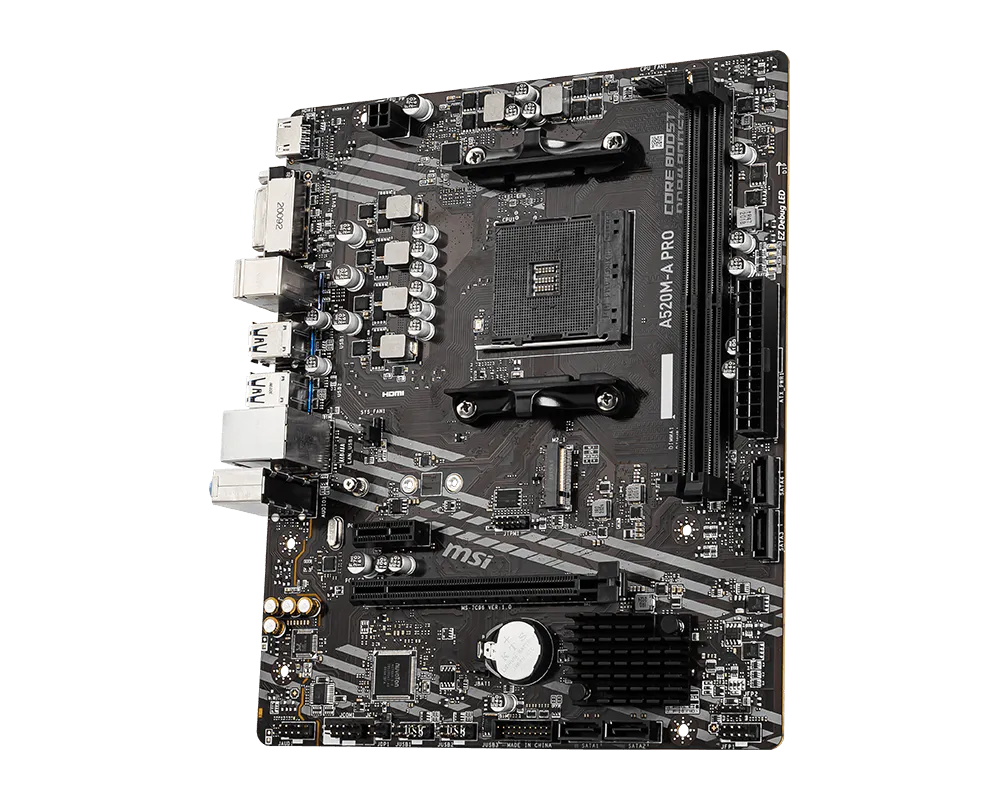

MSI Mainboard, A520M-A PRO, AMD Ryzen
39,00 €
CPU Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors See supported processors Chipset AMD A520 Chipset
- CPU
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors
- See supported processors
- Chipset
- AMD A520 Chipset
- Memory
-
2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
-
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
-
-
- 1x PCIe 3.0 x1 slot 1
- 1x PCIe x16 slot
- The supported specification depends on installed processor.
-
- 1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
- 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
- Maximum shared memory of 16 GB
- Available for the processor with integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
-
- 4x SATA 6Gb/s ports
-
1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- The supported specification depends on installed processor.
-
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
-
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
-
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
-
- 7.1-Channel High Definition Audio
-
- 1x Realtek® RTL8111H Gigabit LAN controller
-
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1xTPM module connector
- 1x Clear CMOS jumper
-
- LAN port
- HDMI™
- DVI-D
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0 Ports
- Audio Connectors
-
- Micro-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
Expansion Slot
Onboard Graphics
Storage
AMD A520 Chipset
RAID
USB
AMD A520 Chipset
AMD Processor
Audio
Realtek® ALC892 Codec
LAN
Internal connectors
Back panel ports
Dimensions
MOUNTING
8 mounting holes
Box content
